Motorcycle Lean Angle Sensor UK: What an IMU Can Measure
Answer: A UK track-day rider can use a general IMU to record useful rotation and acceleration traces, but raw acceleration is not true lean angle during a corner. Braking, bumps, vibration and centripetal acceleration all change the measured force. Treat a single WT9011DCL as an experimental logger unless it is combined with a validated vehicle model and additional references.
Why the bike is harder than a static tilt test
A rider who has only GoPro footage and feel after each session naturally wants a lean curve to compare. On the paddock stand, gravity gives an accelerometer a clear reference. On track, the sensor measures specific force from gravity plus acceleration, braking, kerbs and vibration. A simple arctangent can therefore report a convincing number that is not the motorcycle's real roll angle.
Research on high-performance motorbike lean-angle estimation combines IMU and GNSS data with a coordinated-manoeuvre model and an extended Kalman filter. That is evidence that the problem is solvable; it is also evidence that one raw channel is not enough.
Build a logger before an angle display
- Use a rigid, mechanically retained mount on the motorcycle frame, not clothing or loose bodywork.
- Document the sensor axes and the zero attitude while stationary.
- Log acceleration, angular rate, orientation output and timestamps together.
- Add GNSS speed and time if the analysis will attempt dynamic lean estimation.
- Record a stationary period before and after every session to expose offset and drift.
- Compare repeated laps or corners only after checking packet loss and mount movement.
Do not look at a phone, laptop or live graph while riding. Start and stop logging in the paddock, secure the device against detachment and follow the circuit organiser's rules.
What you can compare honestly
- Timing of roll-rate peaks relative to GNSS position or lap markers.
- Repeatability of a filtered trace through the same corner.
- Vibration signatures before and after a mounting change.
- Whether a derived estimate agrees with an independent reference in a controlled test.
Do not label an unvalidated orientation channel “maximum lean” or use it to decide how much grip remains. Tyre, suspension, camber, rider movement and line all sit outside a general IMU's direct measurement.
When to stop the experiment
Stop if the mount shifts, the logger can become a projectile, data dropouts cluster during high vibration, the zero attitude changes after a session, or the algorithm cannot reproduce a known static angle. The wish to break a lap-time plateau does not justify turning an uncertain estimate into riding advice.

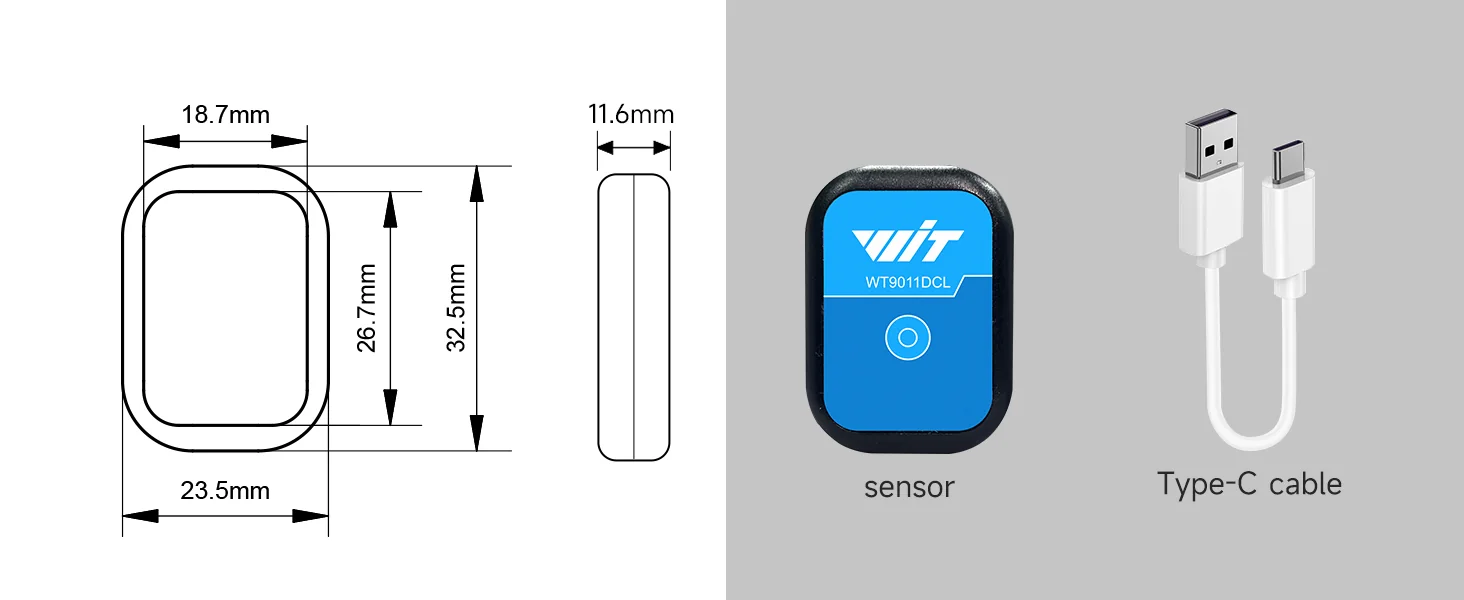

Read the WITMOTION WT9011DCL guide for the device outputs before designing the logger.
Buying boundary
The current protected WT9011DCL listing shows £51.80. Confirm the exact model, firmware, included cable, stock location and returns in writing before ordering. No weather, impact or motorsport suitability is claimed here.
Frequently asked questions
Can an accelerometer measure motorcycle lean angle by itself?
Not reliably during dynamic riding. It cannot separate gravity from braking, cornering, bumps and vibration without a model and other measurements.
Where should I mount an IMU on a motorcycle?
Use a rigid, retained frame mount with documented axes, away from excessive heat and avoidable magnetic disturbance. The mount must not endanger the rider or others.
Can I use the displayed angle as a safety limit?
No. An unvalidated logger is for analysis, not grip estimation or riding decisions. Validate any derived angle against an independent reference in controlled conditions.
