Wearable Sensor for Joint Angle Physiotherapy: What It Can Show
Answer: A wearable sensor for joint angle physiotherapy can make repeated movement trials easier to compare, especially outside a camera laboratory. It does not become a clinical goniometer merely because it reports angles. Sensor placement, segment alignment, calibration and a validated workflow determine whether the curve is useful.
What an IMU can add to a physiotherapy workflow
A clinic owner who is tired of explaining small visual changes to a patient may value a repeatable curve: the same movement, the same placement and the same analysis at two appointments. An IMU can record orientation and angular velocity while the patient moves, rather than only a static end position. That can support discussion and service evaluation.
A systematic review of wearable sensors for joint-angle estimation found that IMUs can be useful for studying human movement, but results depend on the joint, movement complexity, placement, biomechanical model and calibration. That is the honest starting point for a non-engineer clinician: the workflow matters as much as the box.
One sensor, two sensors and the meaning of “joint angle”
- One sensor on one segment: reports that segment's orientation relative to the chosen frame.
- Two sensors on adjacent segments: can support a relative-angle calculation after both frames are aligned.

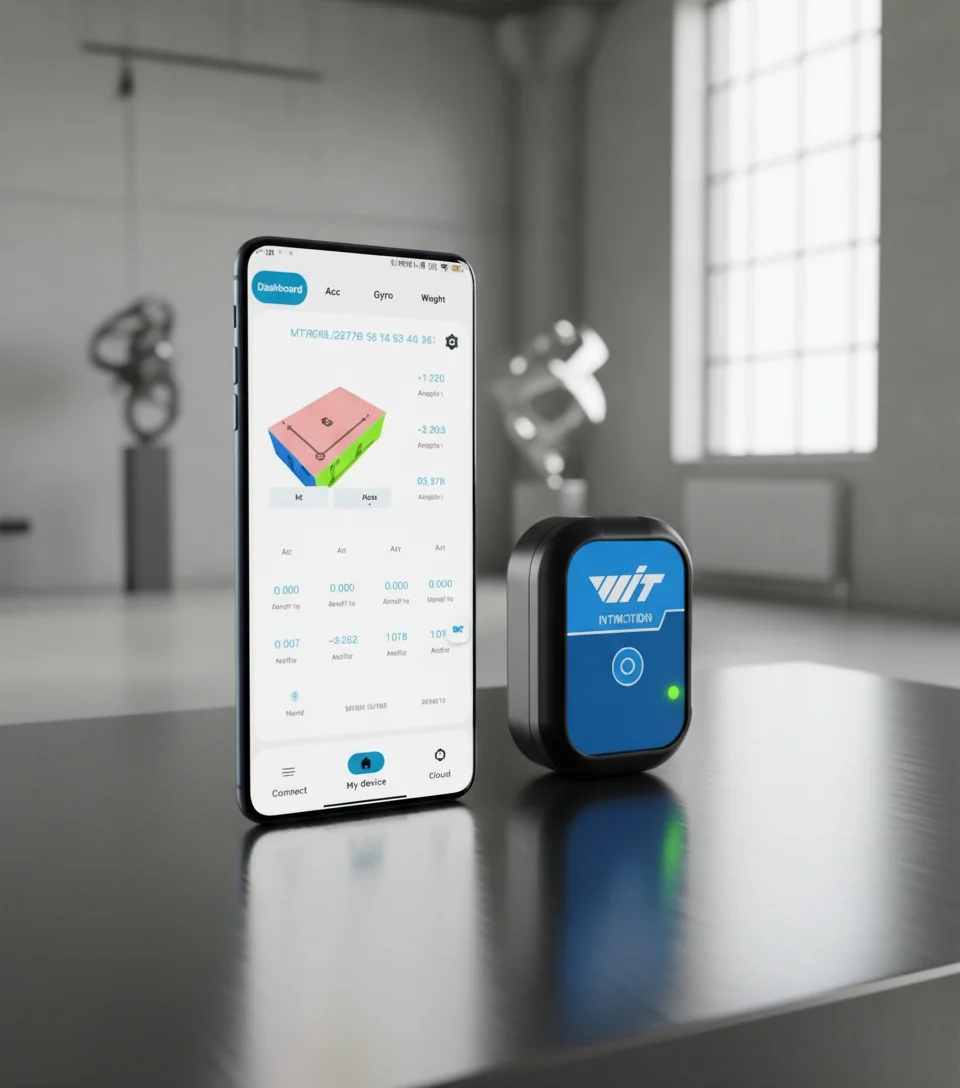

- A phone graph: may display Euler angles, but the displayed axis is not automatically anatomical flexion or extension.
- Dynamic movement: adds soft-tissue movement, strap slip and magnetic disturbance that a static bench test does not show.
If the aim is left-versus-right comparison or change over time, define the placement from anatomical landmarks and photograph it. A five-degree change means little if the strap moved between sessions.
A cautious pilot protocol
- Choose one low-risk movement and one outcome, such as peak sagittal-plane range.
- Mark and photograph placement; use the same strap tension and orientation.
- Calibrate in the room where measurements will be taken.
- Collect three repeats and report their spread, not only the best trace.
- Compare with the clinic's usual method on the same participant.
- Record exclusions such as strap slip, lost packets or pain-limited trials.
A 2025 lower-limb review and meta-analysis concluded that wearable IMUs should remain complementary rather than stand-alone clinical tools while protocols and validation vary. Keep that boundary in patient-facing language.
Clinical and practical stop points
Do not use a general-purpose module to diagnose pathology, certify recovery, determine treatment or replace an approved medical device. Stop if placement cannot be repeated, the trace changes materially after recalibration, the movement spans several planes that your model does not cover, or the patient cannot perform the trial safely.
The desire for objective progress evidence is reasonable; overstating the number is not. Label charts as measurements from the defined protocol, include uncertainty and retain the clinician's judgement.
Buying boundary

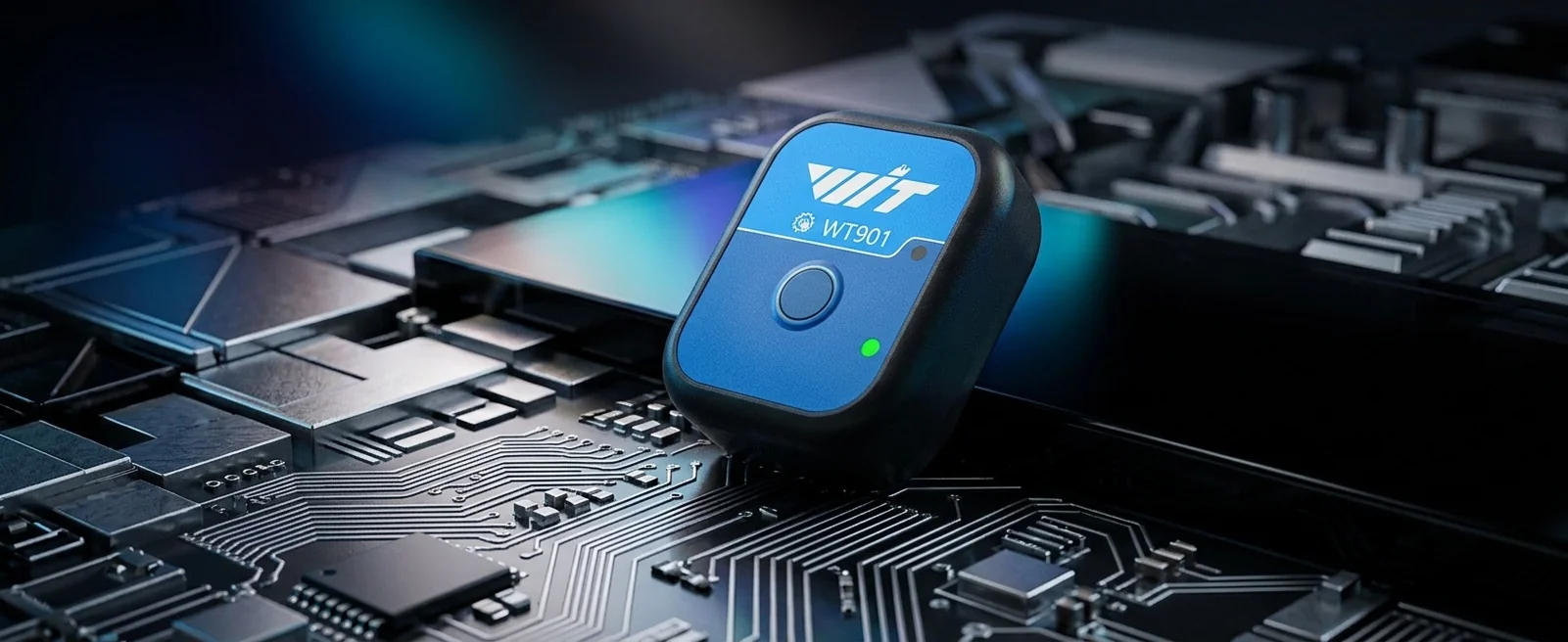

The current protected WT9011DCL listing shows £51.80. Confirm the exact model, firmware, included cable, stock location and returns in writing before ordering. It is not presented here as a medical device.
Frequently asked questions
Can a wearable IMU replace a goniometer?
Not automatically. It can add dynamic and repeatable data, but the chosen joint, placement, calibration and validation determine agreement with the clinic's reference method.
Do I need two sensors to measure a joint?
Usually, if the outcome is the relative angle between two body segments. One sensor only describes its own segment relative to a reference frame.
Can I use WT9011DCL data to make a diagnosis?
No. Treat a general-purpose IMU as a measurement and development tool, not a stand-alone diagnostic or approved medical instrument.
